Explosion Proof Hoist (RES/RESM) [ 0.5 ton - 20 ton ]
The RES series is recommended for use in explosive atmospheres featuring various ignitable gases and vapors, where special attention is required.
Explosion class and ignition temperature category for ambient gas or steam: 'd2 G4'
-
Features

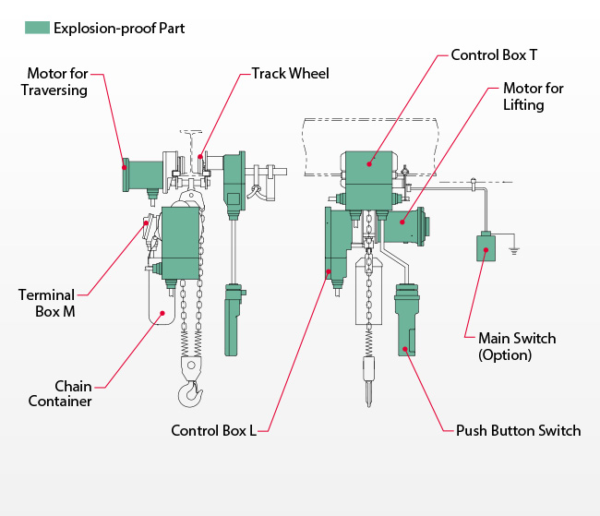

- Explosion-Protected Construction : Motor (for Lifting & Traversing), Control Box, Push Button Switch, Motor (for Traversing), Terminal Box
- Cable Entry : Pressure-Proof Packing Construction, Rubber Insulated Flexible Cable (3RNCT)
- Useful Place : Factory, Business Facility (Not Use at Mining)
With Hook Suspension

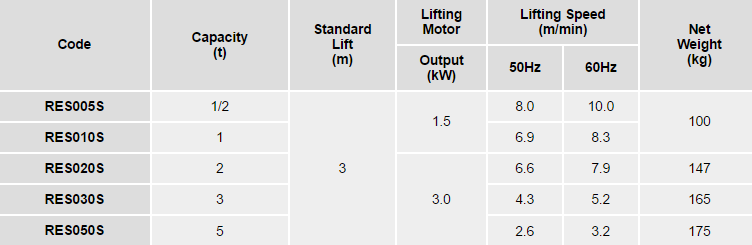

* Specification
※Major capacities example. For more information, please refer to Product Catalog.

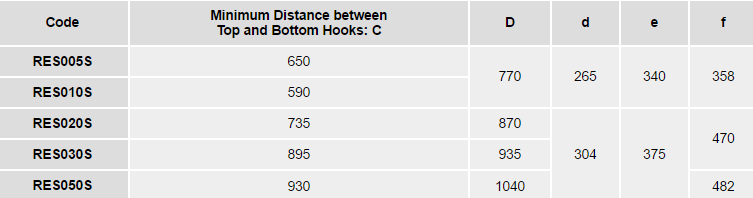

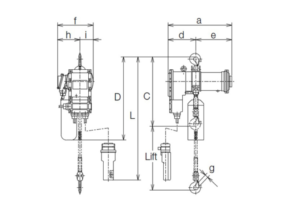

* Dimension (mm)
※Major capacities example. For more information, please refer to Product Catalog.
With Motorized Trolley

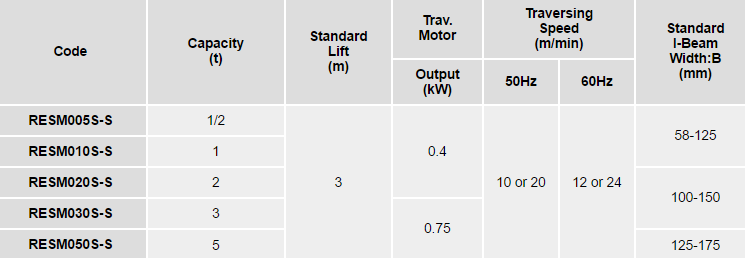

* Specification
※Major capacities example. For more information, please refer to Product Catalog.

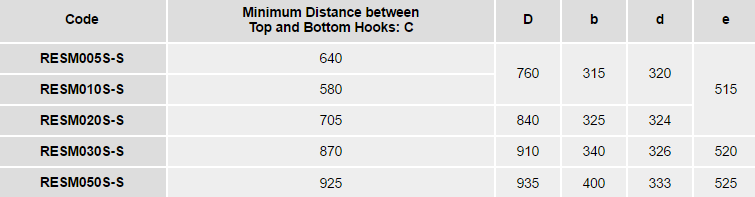

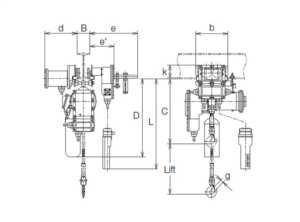

* Dimension (mm)
※Major capacities example. For more information, please refer to Product Catalog.
