PRODUCTS
Geared Trolley Type [125 kg to 2 ton (3 Phase), 250 kg to 1 ton (1 Phase) ]
Engineered for daily use in shops and light industry. Featuring advanced technology and easy serviceability.
-
Features
> Pull-rotor type motor brake
> Wear-resistant friction clutch
> Special load chain
> Aluminum hoist body and highly insulated push button station
> Swivel bottom hook
-
Standard Specifications
Light Weight and Simple Structure for Maximum Usability
Single Speed with Geared Trolley, 3 Phase, Direct Voltage Control
The single speed delivers high speed and contributes operation efficiency.

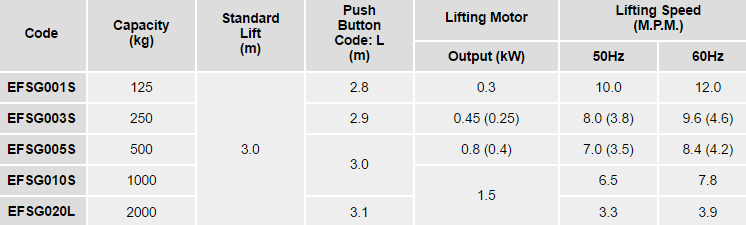

* Specification
※Major capacities example. For more information, please refer to Product Catalog.

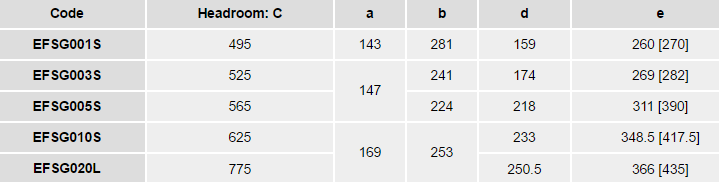

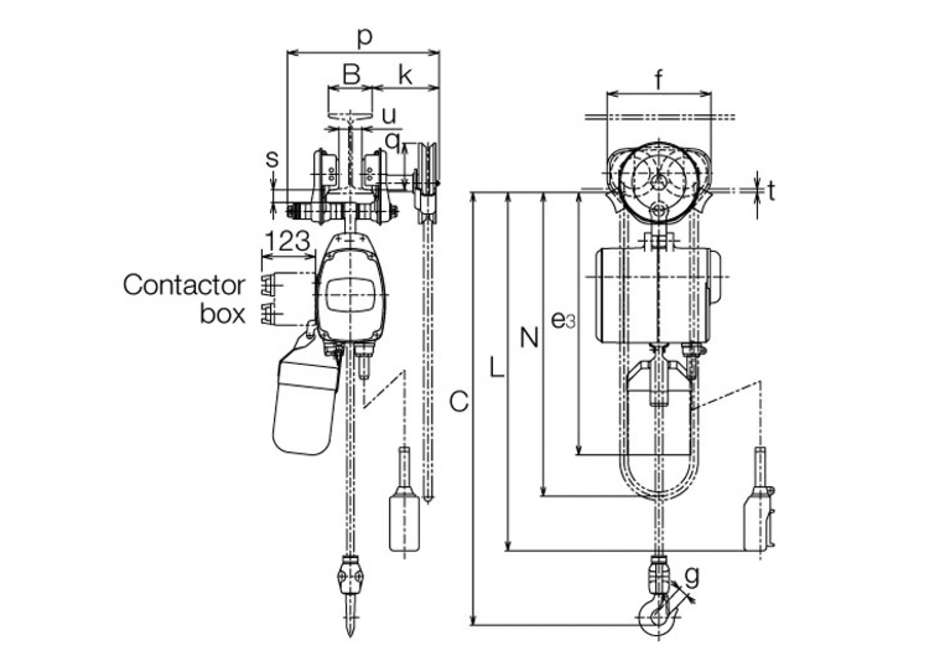

* Dimension
※Major capacities example. For more information, please refer to Product Catalog.
Dual Speed with Geared Trolley, 3 Phase, Direct Voltage Control

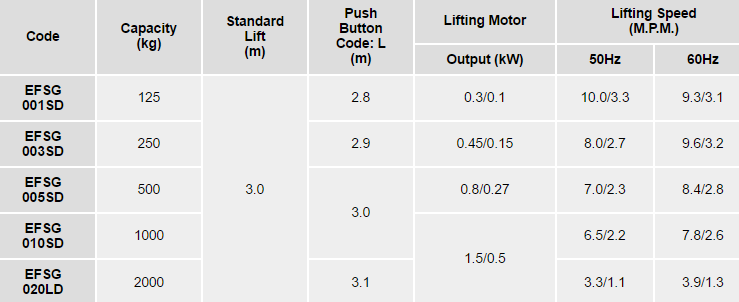

* Specification
※Major capacities example. For more information, please refer to Product Catalog.

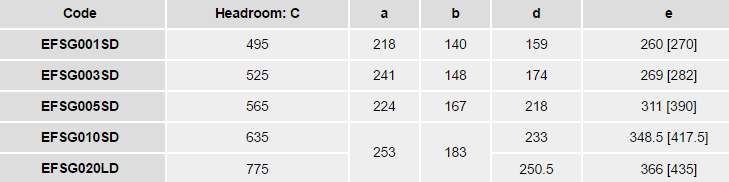

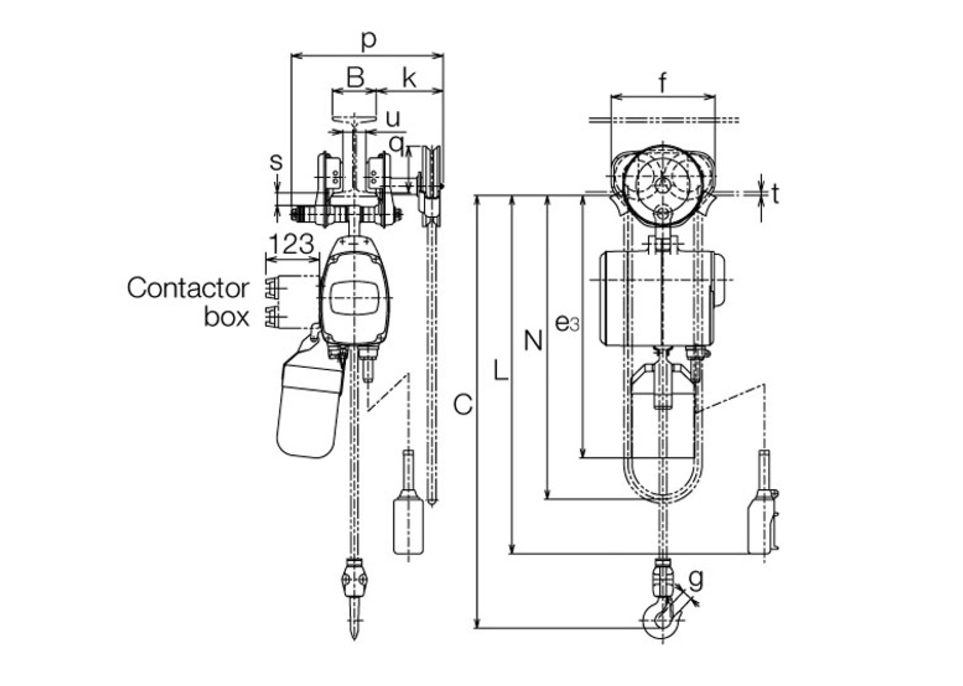

* Dimension
※Major capacities example. For more information, please refer to Product Catalog.
